10TEN JHL LK140 Pit Bike Review, Specs & Buying Guide
Considering the 10TEN JHL LK140? This guide explains its specifications, how to assess rider fit and what to consider before choosing a 140cc manual pit bike.
Choosing the right bike starts with the rider. Think about the machine they currently ride, how confidently they control it and whether they need more physical room, more engine performance or both.

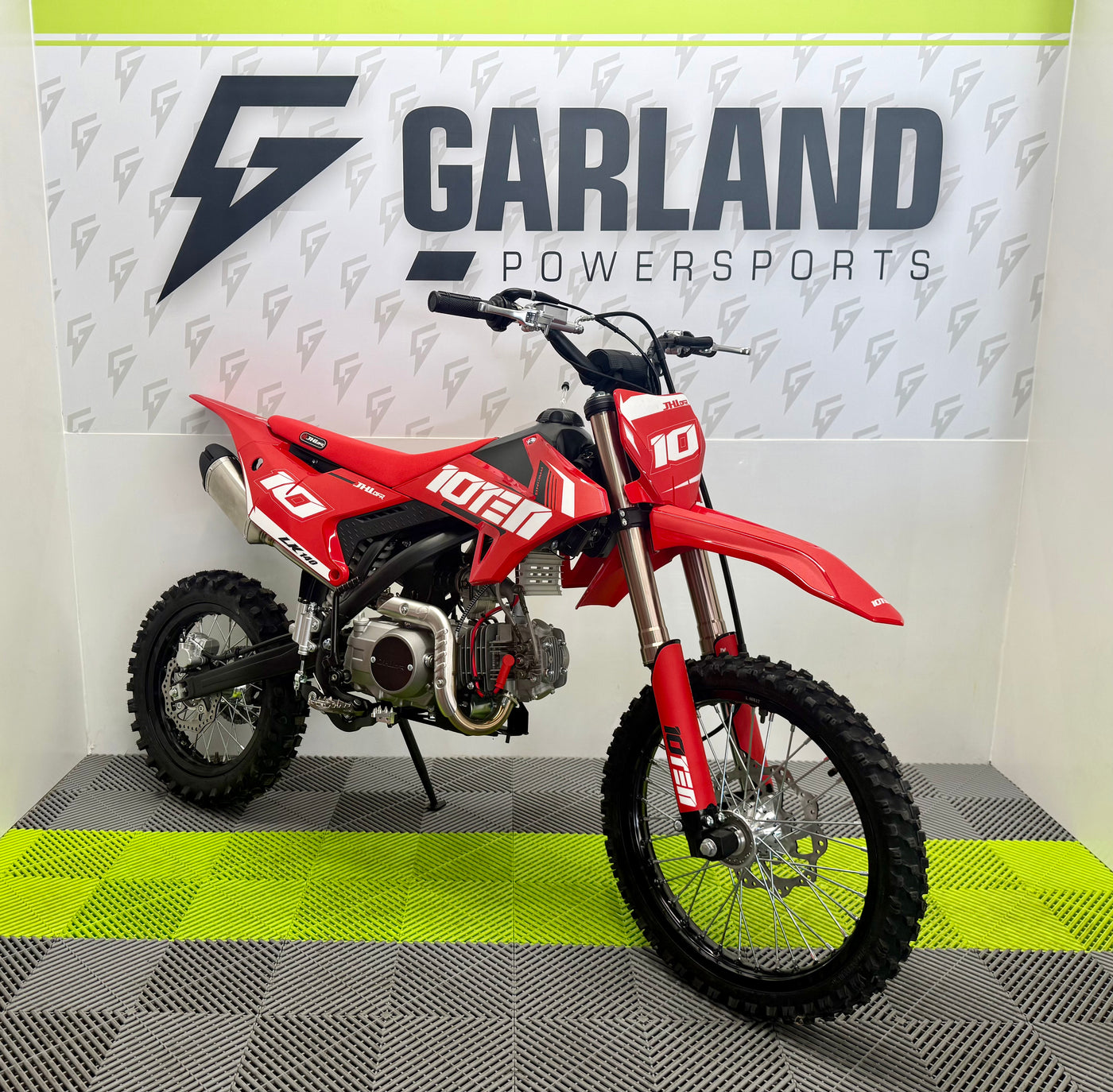

10TEN JHL LK140 Key Specifications
| Specification | 10TEN JHL LK140 |
|---|---|
| Engine | 140cc Zongshen W140 four-stroke |
| Claimed maximum power | 9.5hp |
| Transmission | Four-speed manual with manual clutch |
| Starting | Electric and kick start |
| Wheels | 17-inch front / 14-inch rear, aluminium rims |
| Seat height | 830mm / 83cm |
| Wheelbase | 1250mm |
| Front suspension | 35mm inverted forks, non-adjustable |
| Rear suspension | 340mm mono shock, non-adjustable |
| Brakes | Front and rear hydraulic discs |
| Fuel tank | 6 litres |
| Hourmeter | Included |
Who Should Consider the LK140?
Our recommendation is to consider this model for a rider who already has off-road experience and can confidently coordinate the clutch, throttle and gears.
Before moving up, ask:
- Can the rider pull away, change gear and stop confidently on their current bike?
- Are they comfortable making slow, controlled turns?
- Can they manage the bike when manoeuvring with the engine switched off?
- Do they need a larger chassis, rather than simply wanting a bigger engine?
If any of those points are uncertain, speak to us before ordering. Buying a bike with room to grow only makes sense when the rider can control it comfortably today.
Is the LK140 the Right Size?
Do not choose by age alone. Send us the riderās height, inside-leg measurement, riding experience and current bike model so we can help assess the next step.
Think beyond reaching the ground. A suitable riding position should also allow comfortable access to the handlebars, clutch, brake levers and foot controls without stretching.
Need help choosing?
Tell us what the rider currently rides and what feels too small or limiting. That gives us a much better starting point than age alone.
10TEN JHL LK140 vs LK125
The 10TEN JHL LK125 is the most relevant alternative to compare. It has the same stated seat height and wheel sizes, with a 125cc HS125 engine producing a claimed 7.5hp.
| Feature | LK125 | LK140 |
|---|---|---|
| Engine capacity | 125cc | 140cc |
| Claimed maximum power | 7.5hp | 9.5hp |
| Seat height | 830mm | 830mm |
| Wheel sizes | 17-inch front / 14-inch rear | 17-inch front / 14-inch rear |
Our advice: choose the engine that matches the riderās ability and intended use. A rider who needs a larger bike does not automatically need the stronger engine.
View the LK125 or explore the LK140.
How Fast Is the LK140?
We do not quote a verified top-speed figure. Rider weight, gearing, terrain and conditions all affect the result, so a single speed claim would tell you little about how the bike will suit its rider.
For buying purposes, prioritise confident control, suitable sizing and the riding area available. Top speed should not decide which pit bike you buy.
Delivery, Assembly & Ownership
Garland Powersports offers boxed delivery or Build & PDI preparation. Check the options and delivery details when ordering.
Plan for ongoing ownership as well as the initial purchase. Follow the supplied maintenance instructions, keep a record of servicing and make pre-ride checks part of the routine. Ask us if you are unsure what preparation your chosen delivery option includes.
Where Can You Ride?
The LK140 is sold for off-road use on suitable private land with the landownerās permission.
If you intend to visit a riding venue, check its rules and bike requirements directly before booking. Choose appropriate riding equipment and an environment suited to the riderās experience.
Buy Your LK140 From Garland Powersports
We help you work through the practical questions before ordering: rider fit, experience, assembly options and delivery.
Use the product page for the latest price, availability and ordering options, or explore the wider range if you are still comparing.
Frequently Asked Questions
Is the LK140 a sensible first pit bike?
For a complete beginner, we recommend discussing the riderās size and experience with us first. Learning the controls on a suitable machine matters more than choosing the largest engine within budget.
Can I choose a pit bike using the riderās age?
Age is only a starting point. Height, inside leg, strength, confidence and previous riding experience give a more useful picture.
Should I buy the LK125 or LK140?
Compare both when deciding how much performance the rider needs. Choose based on their current control and confidence rather than the expectation that they will grow into extra power.
What information should I send for sizing advice?
Send the riderās height, inside-leg measurement, current bike and a brief description of their experience with gears and clutch control.
Where can I see the latest LK140 price?
Visit the 10TEN JHL LK140 product page for current pricing, availability, photographs and delivery options.
Ready to Choose Your 10TEN JHL LK140?
Start with the right fit and a realistic assessment of riding ability. If you are confident the LK140 suits the rider, view the product page to choose your delivery and preparation options.
