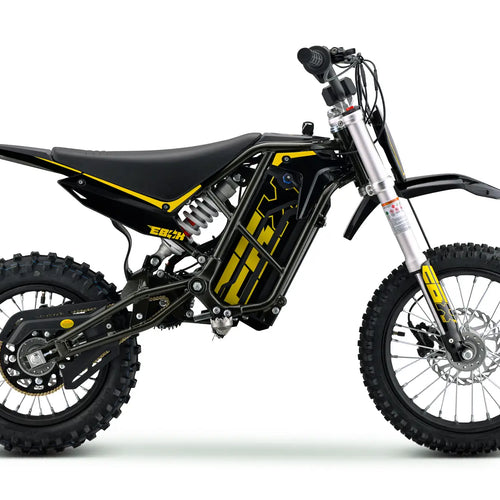

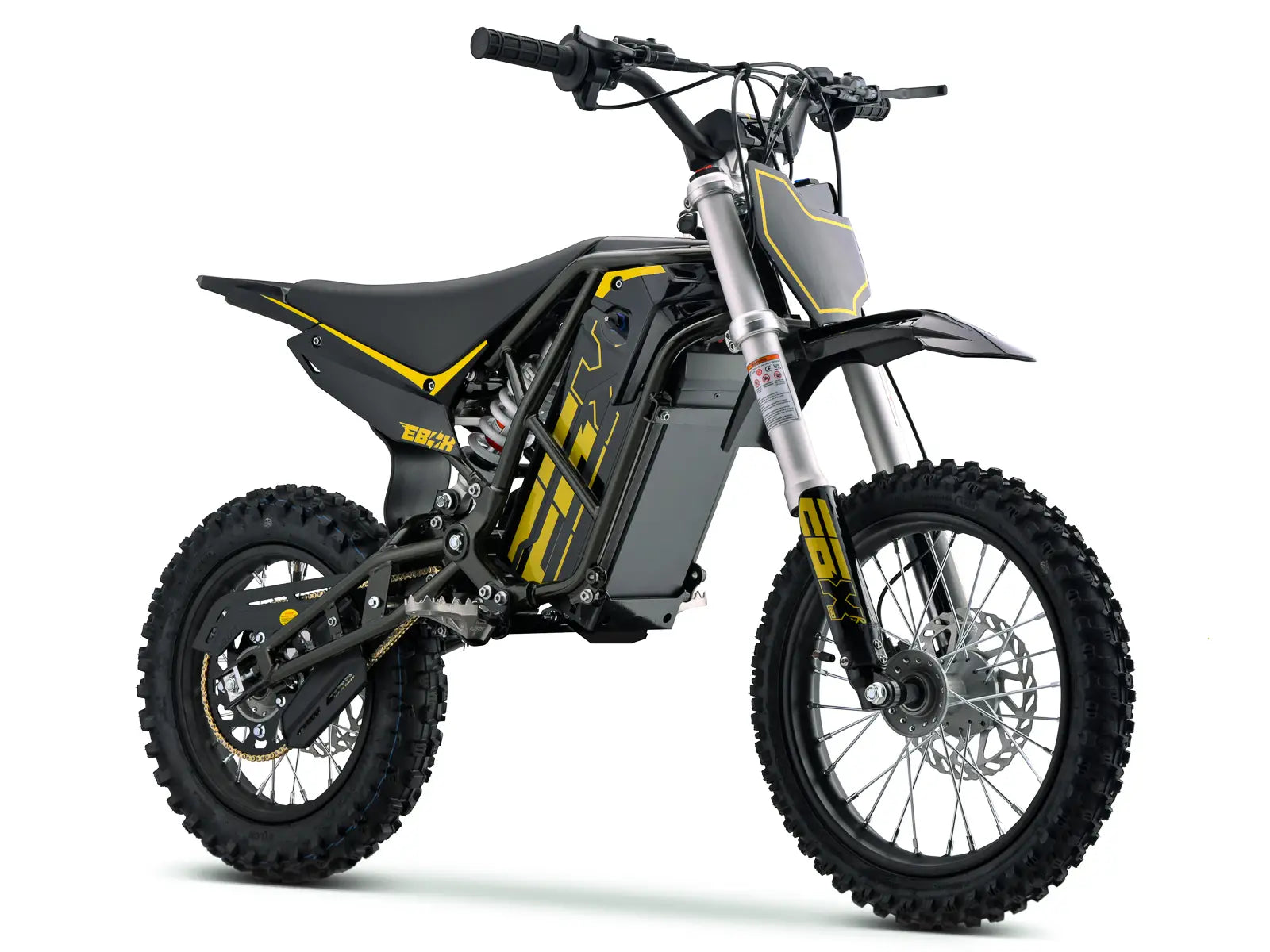

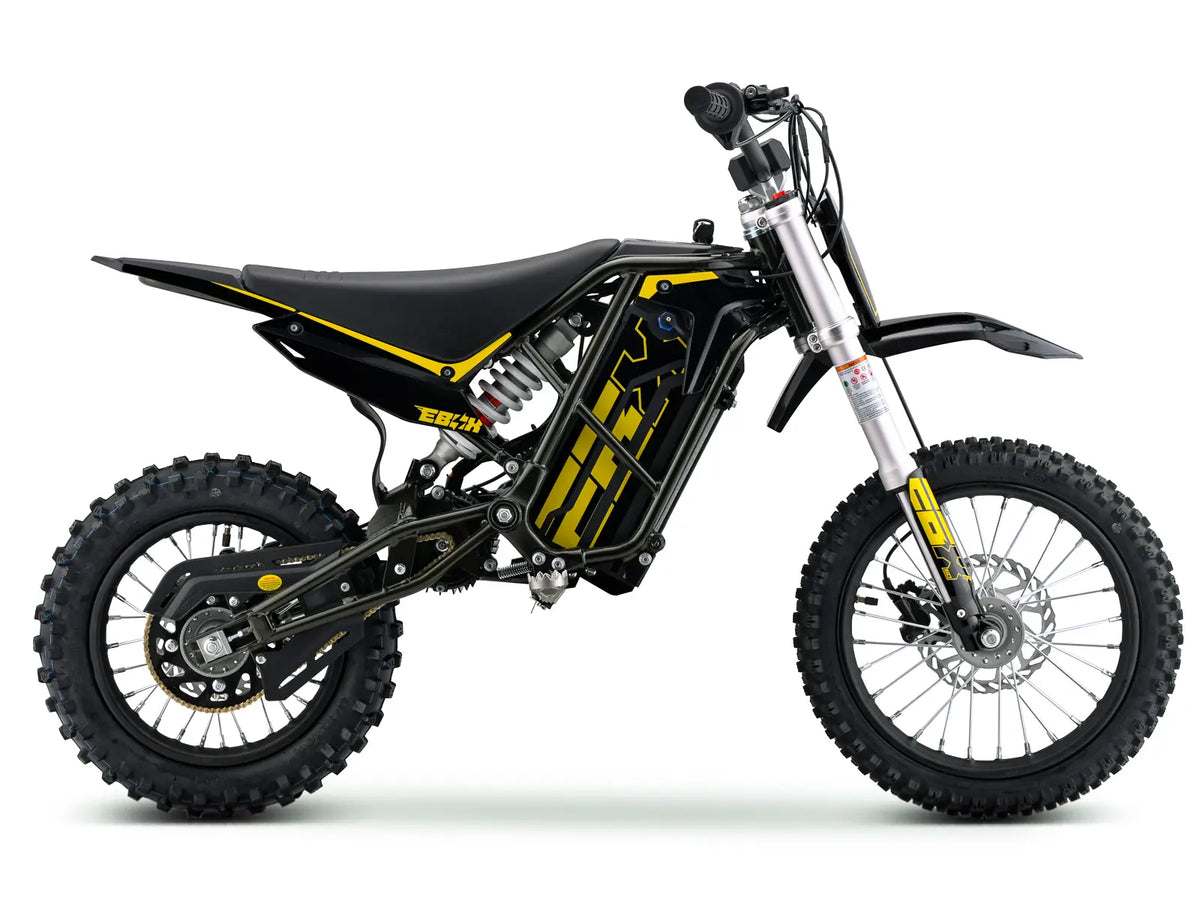

EBOX V3 60R Electric Offroad Bike - Black
£1,849.00
-
Description
Not to be confused with the Ebox 3 72v!
The EBOX V3 has finally arrived! You wanted more power, more punch, more range, more control and a higher top speed?? We listened to you, and we delivered all of that and more, featuring the brand new EBX powertrain!
Bigger batteries, a Fardriver 80A controller and a high power PMSM motor with encoder and temperature feedback with up to 6.3kW. There are no hall sensors to fail and the precise control of the encoder, provides laser sharp coil firing for increased efficiency and maximum performance.
Added to that we have included a colour TFT display with 3-speed modes and fault-finding capability. Our warranty has been increased to 1 year, (or 1000 miles) on all powertrain components (battery, controller, motor). What does this mean? Basically, peaking top speeds of up to 55 mph! New colourways, new tyres and all in the same mini package you can throw in the trunk of your car.
SPECS
Frame type V3 double cradle wide frame (190mm) large capacity battery, race inspired revised geometry. Increased fork travel, increased pre-load and heavier oil. Standard Footpeg. Wheel sizes 14" front / 12" rear Display TFT odometer display with 3 speed modes and fault code analysis software Front brake Hydraulic Disc (Right lever) e-moto brakes, 180mm rotor, 4 bolt Front disc 180mm Rear brake Hydraulic Disc (Left lever) e-moto brakes, 180mm rotor, 4 bolt Rear disc 180mm Tyres Upgraded 60/100-14 & 80/100-12 Dirt Peak power 5.2KW (6.7hp) Chain 219H 108L Gearing Front 10T, rear 70T Max load 85kg Suspension Upgraded 150mm travel USD front forks / Progressive mono-shock with 150mm travel Throttle SURRON style full twist Handlebar 6061 T6 EBOX High Rise 1pc Motor 60V EBX PMSM motor with temp feedback and encoder Rated power 4.5KW Max RPM 8,500 Battery New 60v 26 Ah battery with smart BMS 18,600 Cells potted in steel case with QS8 connector and air breaker switch Controller 80 Amp fardriver controller Charger AC 100-240V, Output: 67.2V, 5A Tech
Charge time 4-5 hours Range per charge 25-28 miles (40-45Km)
Top speed 53mph (85Km/h) External adjustability Top speed, Acceleration Waterproof IP54 Wheelbase 980mm Ground clearance 275mm Seat height 65cm Weight 42.5kg -
