Description

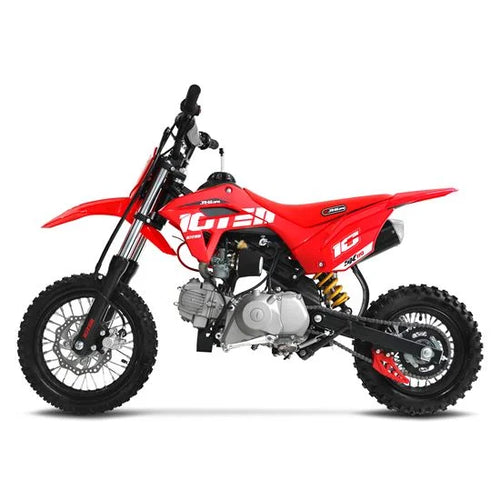

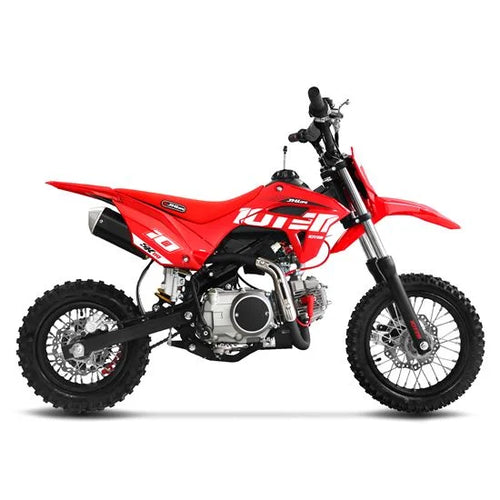

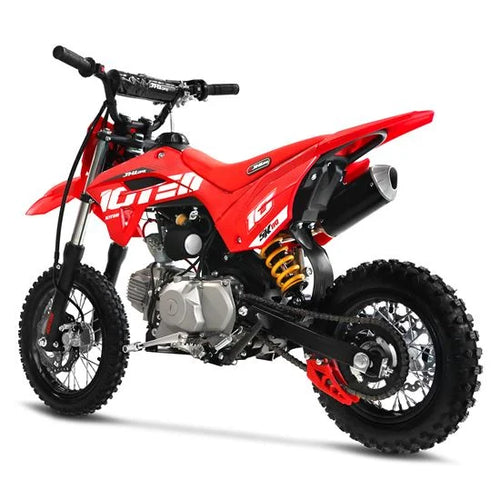

10TEN JHL SK110 12/10 Pit Bike – Quick Overview
Best for: smaller riders who need a low, compact pit bike and are ready to begin learning gear selection.
Engine: HS110 four-stroke producing a claimed maximum of 7hp.
Transmission: four-speed semi-automatic gearbox with no manual clutch lever.
Starting: electric and kick start.
Wheel size: 12-inch front and 10-inch rear.
Seat height: 630mm / 63cm.
Standout feature: 110cc semi-automatic performance in the same low-seat SK platform as the smaller starter model.
Our view: the ideal bridge between the fully automatic SK70 and larger MK110 for a smaller rider who is ready to begin selecting gears.

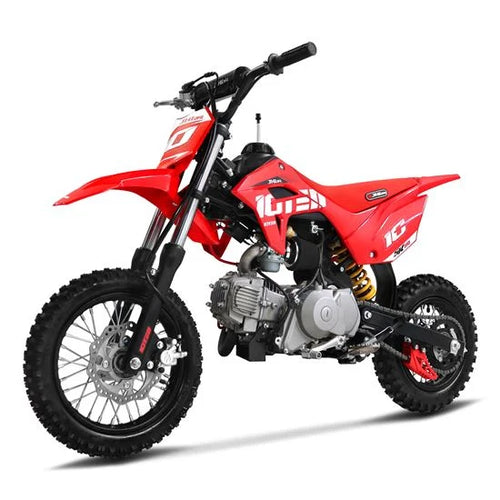

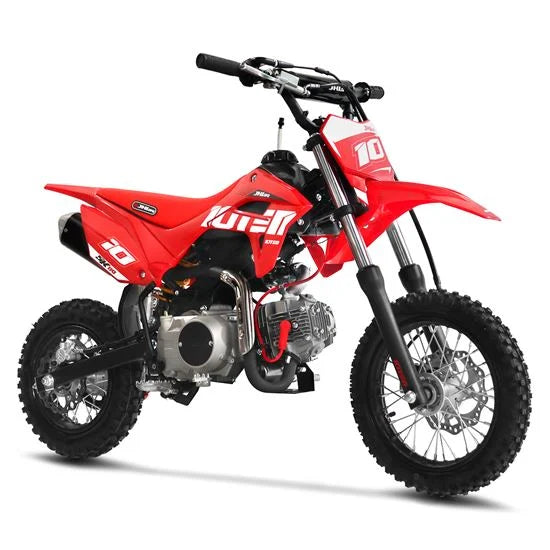

The 10TEN JHL SK110 12/10 takes the compact SK platform and adds a 110cc four-stroke engine, four-speed semi-automatic gearbox and larger 12-inch front wheel.
Producing a claimed maximum of 7hp, it provides a useful performance increase over the SK70 while retaining the same manageable 630mm seat height and 1015mm wheelbase.
The rider selects each gear using the foot-operated lever, but there is no manual clutch lever. This allows a developing rider to learn gear selection without having to coordinate the clutch and throttle at the same time.
For a smaller rider who needs more progression than the automatic SK70 but is not physically ready for the taller MK110, the SK110 fills an important gap.
Our Take on the 10TEN JHL SK110
The SK110 is not simply a smaller MK110. Its 630mm seat height and compact wheelbase make it a genuinely different fit for shorter riders.
The semi-automatic transmission introduces the important skill of gear selection without adding a clutch lever. That makes the transition from an automatic bike much less intimidating.
Choose the SK110 when the rider still needs a low chassis but has progressed beyond the fully automatic controls of the SK70.
Why Choose the 10TEN JHL SK110?
Semi-Automatic Gears
Four foot-operated gears introduce gear selection without requiring a manual clutch lever.
110cc Four-Stroke
The HS110 engine produces a claimed maximum of 7hp for recreational off-road riding.
Low 630mm Seat
The compact riding position suits smaller riders who would struggle with the taller MK chassis.
Electric & Kick Start
Push-button convenience is backed up by a conventional kick-starting system.
12/10-Inch Wheels
A larger front wheel improves rough-ground ability while the 10-inch rear keeps the seat low.

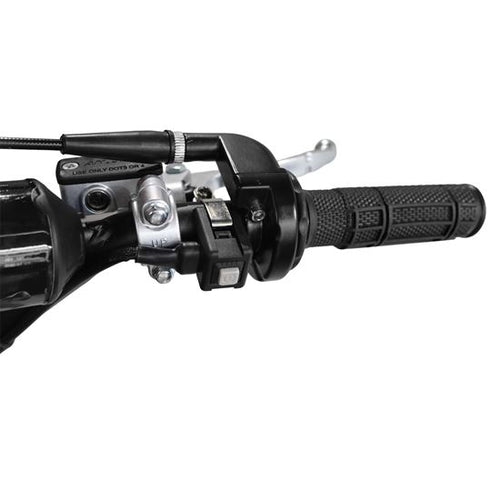

Hydraulic Brakes
Front and rear hydraulic discs provide controlled stopping performance.
Learn Gears Without a Manual Clutch
The SK110 uses a four-speed semi-automatic gearbox.
The rider changes gear using the conventional foot-operated lever, but the internal clutch operates automatically. There is no clutch lever on the handlebar to coordinate during starts or gear changes.
This allows the rider to concentrate on choosing the correct gear, managing the throttle, braking and developing their off-road technique.
It makes the SK110 a logical next step from a fully automatic petrol bike or a smaller electric balance bike.
Important: Semi-automatic does not mean fully automatic. The rider must still select each gear using the foot-operated gear lever.

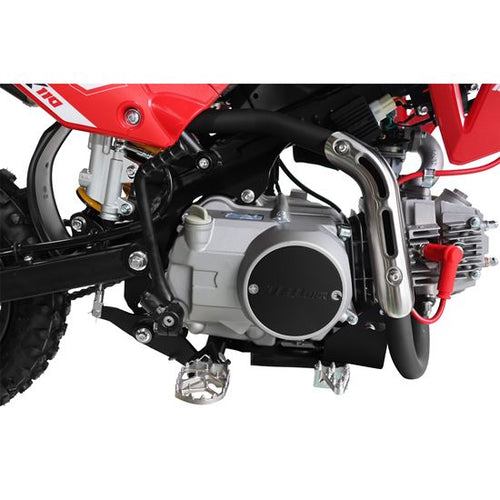

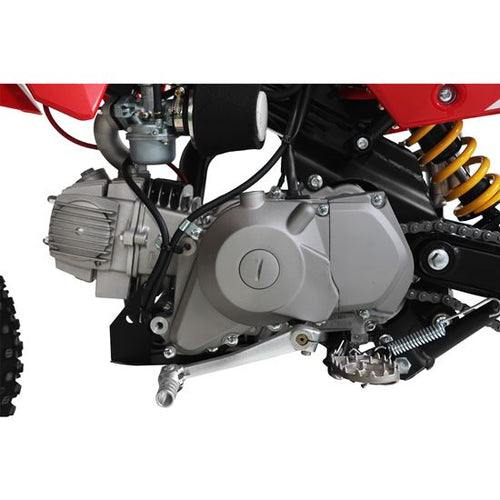

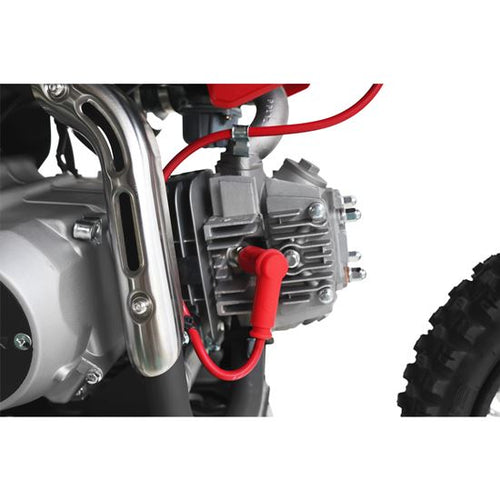

HS110 Four-Stroke Engine – 7hp
Power comes from the HS110 four-stroke engine, producing a claimed maximum output of 7hp.
This provides a useful increase over the 70cc SK70 while retaining a compact chassis designed around smaller riders.

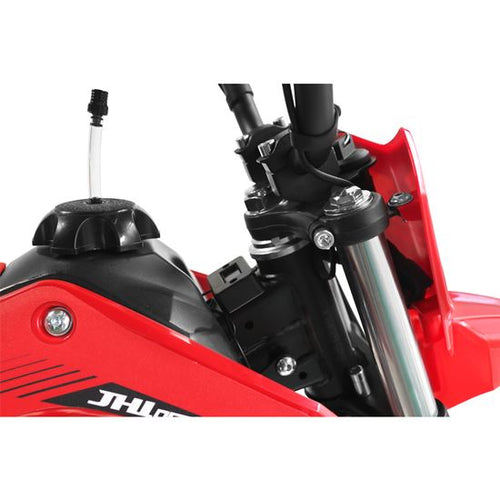

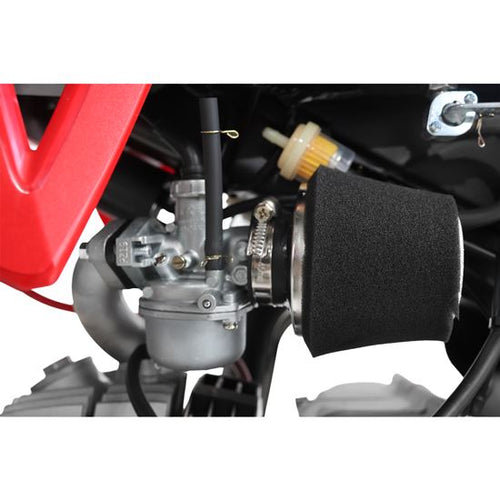

Fuelling is handled by a PZ19 carburettor, while the compact 3.5-litre fuel tank is fitted with a CNC vent valve.
The conventional four-stroke and carburettor setup is straightforward, but correct assembly, initial setup and routine servicing remain essential.
Electric and Kick Start
The SK110 comes with both electric and kick start.
The electric starter provides convenient push-button starting, while the kick starter remains available as a practical backup.
A 5Ah gel battery powers the electric starting system. Battery condition, fuel quality, carburettor setup and routine maintenance will all affect starting performance.
630mm Seat Height and Compact 12/10 Chassis
The SK110 has a 630mm seat height, 1015mm wheelbase and 12-inch front with 10-inch rear wheel combination.
Its overall dimensions are approximately 1440 × 650 × 900mm, keeping the bike low and manageable.
The 12-inch front wheel helps it roll more easily over bumps and uneven terrain than the 10-inch front wheel fitted to the SK70. The 10-inch rear retains the accessible seat height.
SK110 or MK110?
Both models use 110cc engines and semi-automatic gearboxes. The key difference is their physical size:
- SK110: 630mm seat and 12/10-inch wheels
- MK110: 750mm seat and 14/12-inch wheels
Read our complete SK110 vs MK110 comparison.
Rider fit should be assessed using height, inside-leg measurement, physical strength, experience and confidence rather than age alone.
Use our 10TEN JHL pit bike size guide to compare the complete range.
Proper Off-Road Equipment
The SK110 may be compact, but it still receives the essential equipment expected from a proper recreational pit bike.

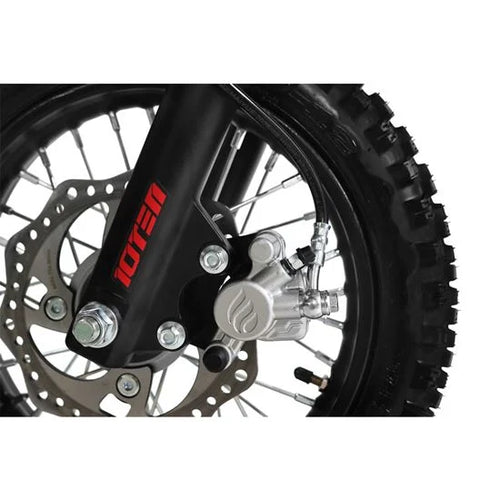

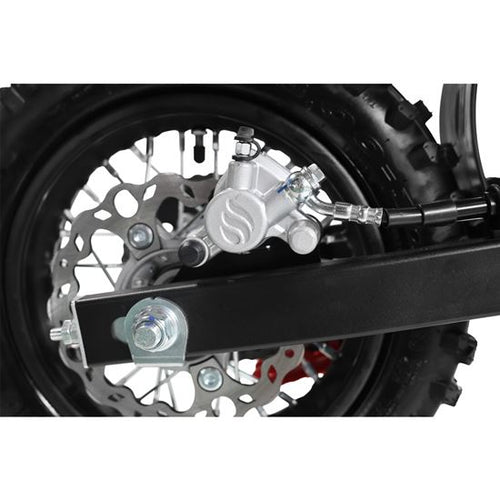

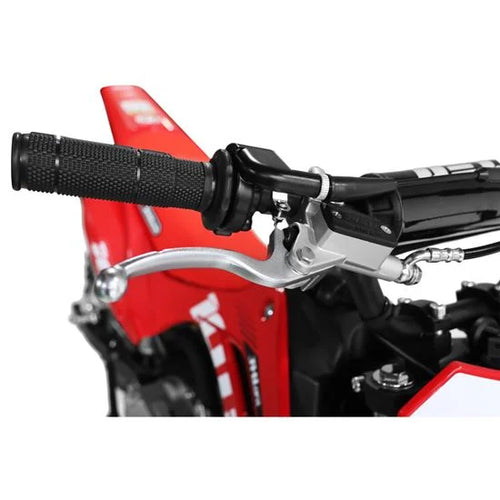

Hydraulic disc brakes at the front and rear provide controlled stopping performance.

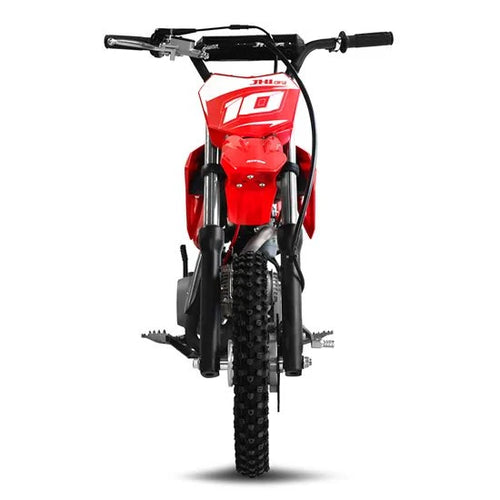

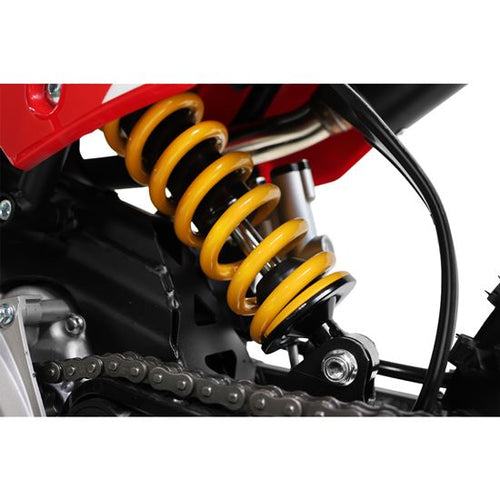

At the front is straightforward 33mm telescopic suspension, paired with rear suspension matched to the compact chassis.
The wheels use durable black steel rims with silver aluminium hubs and Yuangxing off-road tyres:
- Front: 2.50-12 Yuangxing tyre
- Rear: 3.00-10 Yuangxing tyre
Stainless steel footpegs provide a secure platform, while a steel engine bottom protector helps shield the underside of the engine from debris and minor impacts.

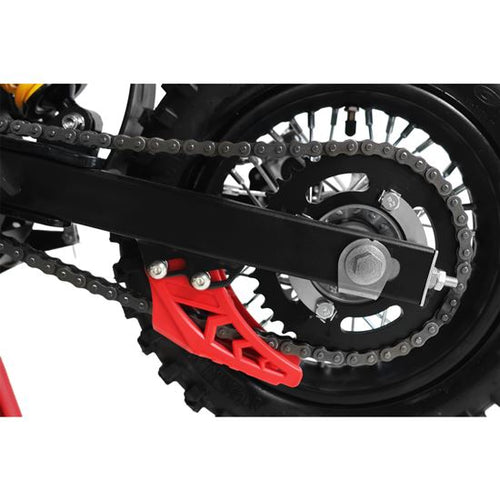

Final Drive and Routine Servicing
Drive to the rear wheel is handled by a heavy-duty 428H Choho chain, running on a 14-tooth steel front sprocket and 39-tooth steel rear sprocket.

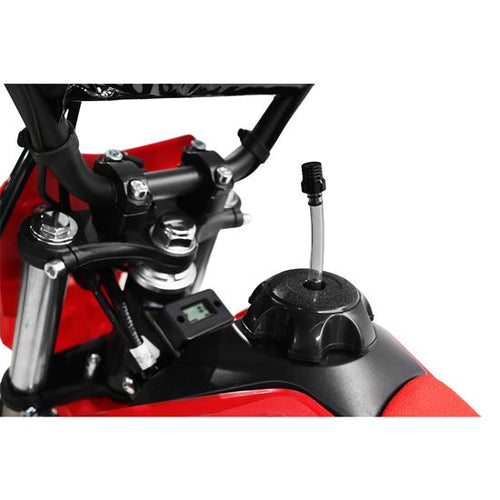

An hourmeter is fitted as standard, making it easier to record engine running time and follow oil-change, valve-check and routine servicing intervals.

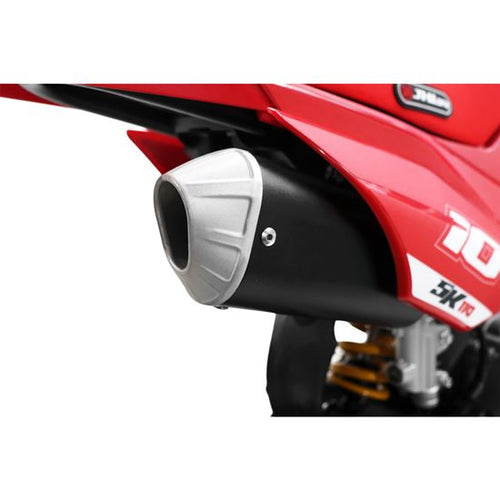

The bike is finished with a black frame, black steel handlebars, steel and aluminium exhaust, and distinctive 10TEN with JHLOFR graphics.
Who Is the 10TEN JHL SK110 Best For?
Choose the SK110 If...
- The rider needs a low 630mm seat
- They are ready to begin selecting gears
- You do not yet want a manual clutch
- The SK70’s automatic setup is now too basic
- The larger MK110 would be physically too tall
- You want electric and kick start
Consider Another Model If...
- The rider needs the simplest automatic controls
- They are not yet ready to select gears
- They comfortably fit a 750mm seat
- They need the room of a 14/12-inch bike
- They are already ready for a manual clutch
- The compact SK chassis has been outgrown
For a new rider, also see our Best 10TEN JHL Pit Bike for Beginners guide.
Key Features
- HS110 four-stroke engine
- 7hp claimed maximum power
- Four-speed semi-automatic gearbox
- No manual clutch lever
- Electric and kick start
- PZ19 carburettor
- 12-inch front wheel
- 10-inch rear wheel
- 630mm seat height
- 1015mm wheelbase
- 33mm telescopic front suspension
- Black steel wheel rims
- Silver aluminium wheel hubs
- Yuangxing off-road tyres
- Front and rear hydraulic disc brakes
- Forged alloy steering stem
- Black steel handlebar
- Stainless steel footpegs
- Steel engine bottom protector
- Heavy-duty 428H Choho chain
- 3.5-litre fuel tank
- CNC fuel tank vent valve
- Hourmeter fitted as standard
- 5Ah gel battery
- Steel swingarm
- Steel and aluminium exhaust
- Black frame
- 10TEN and JHLOFR graphics
10TEN JHL SK110 Specifications
Specification 10TEN JHL SK110 Engine HS110 four-stroke Maximum Power 7hp claimed – off-road use Transmission Four-speed semi-automatic Manual Clutch Lever No Starting System Electric and kick start Carburettor PZ19 Battery 5Ah gel battery Fuel Tank 3.5 litres with CNC vent valve Wheel Size 12-inch front / 10-inch rear Tyres Yuangxing 2.50-12 front / 3.00-10 rear Wheel Rims Black steel Wheel Hubs Silver aluminium Seat Height 630mm / 63cm Wheelbase 1015mm / 101.5cm Dimensions 1440 × 650 × 900mm Front Suspension 33mm telescopic forks Front Brake Hydraulic disc Rear Brake Hydraulic disc Chain 428H Choho Sprockets 14T steel front / 39T steel rear Swingarm Steel Steering Stem Forged alloy Handlebar Black steel Footpegs Stainless steel Engine Protection Steel bottom protector Exhaust Steel and aluminium alloy Hourmeter Included
Delivery, Assembly and First-Ride Checks
10TEN JHL pit bikes are held boxed in UK warehousing ready for nationwide dispatch. Unless a fully assembled option is selected and confirmed, the bike will require final assembly, setup and a complete safety inspection before use.
Before the first ride, check the brakes, gear selection, throttle, steering, wheels, axles, chain alignment and tension, suspension fasteners, tyre pressures, engine oil, fuel system and all safety-critical fixings.
The bike must not be ridden until it has been correctly assembled, serviced and confirmed safe. Regular pre-ride checks and ongoing maintenance remain the owner’s responsibility.
Private-Land Use Only
The 10TEN JHL SK110 is an off-road pit bike intended for responsible recreational use on suitable private land with the landowner’s permission. It is not road legal and must not be used on public roads, pavements, cycle paths or other public spaces. Suitable protective equipment and responsible adult supervision are essential.
10TEN JHL SK110 FAQs
Does the 10TEN JHL SK110 have a clutch lever?
No. It uses a semi-automatic gearbox, allowing the rider to select gears with the foot lever without operating a manual clutch.
Is the SK110 fully automatic?
No. The clutch operates automatically, but the rider must still select between the four gears using the foot-operated gear lever.
What is the difference between the SK70 and SK110?
The SK70 has a 70cc engine, fully automatic controls and 10/10-inch wheels. The SK110 has a 110cc engine, four-speed semi-automatic gearbox and 12/10-inch wheels. Both have a 630mm seat height.
What is the difference between the SK110 and MK110?
Both use 110cc engines and semi-automatic gearboxes. The SK110 has a 630mm seat and 12/10-inch wheels, while the MK110 has a 750mm seat and larger 14/12-inch wheels.
Is the SK110 suitable for beginners?
Yes, provided the rider fits the bike and is ready to learn gear selection. A complete beginner needing the simplest controls may be better suited to the automatic SK70.
Does the SK110 have electric start?
Yes. Both electric and kick start are fitted as standard.
What is the seat height?
The stated seat height is approximately 630mm or 63cm.
Is the SK110 road legal?
No. It is intended for off-road use on suitable private land with the landowner’s permission.
Our Verdict
Choose the SK110 when the rider needs a compact 630mm-seat bike but is ready to begin learning foot-operated gears.
Its biggest advantage is the combination of semi-automatic 110cc performance with a low chassis that remains accessible to smaller riders.
For a rider positioned between the automatic SK70 and physically larger MK110, the SK110 is the correct bridge through the range.
